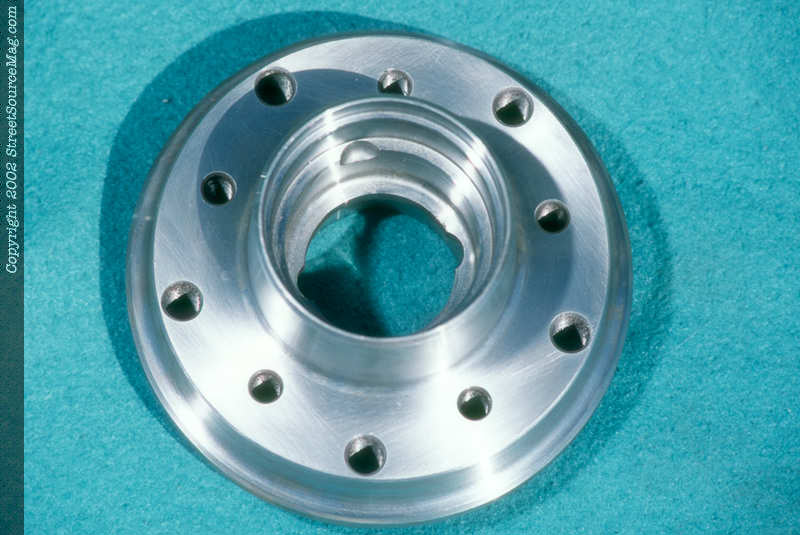

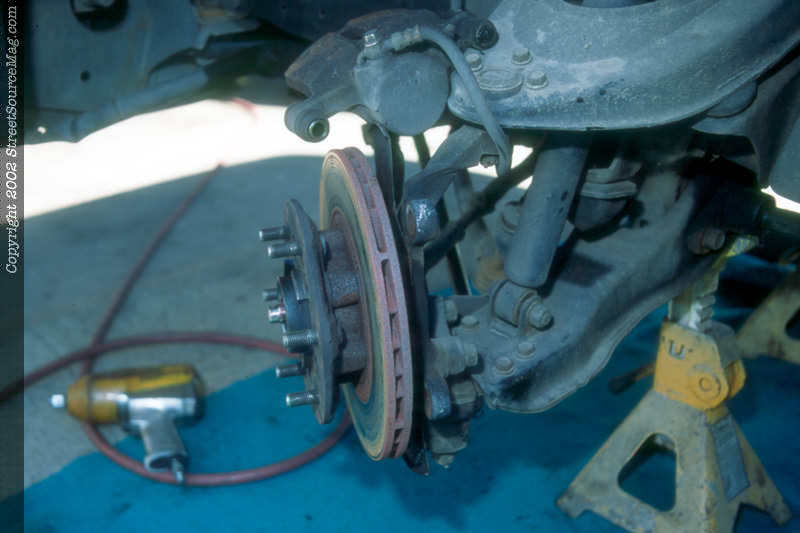

Step 4: Remove the front brake calliper and calliper bracket. Remove the front wheel bearings and the hub assembly. Step 5 This is a back view of the new hub, place the new rotor on the hub, using the supplied 10 metric cap, bolt the rotors to the backside of the hubs, apply Locktite and torque to vehicle manufacturers specifications. Install the inner and outer bearing races (we recommend using a proper bearing race installing tool) Now, using a good quality wheel bearing grease, grease the inside of the hub and bearing races and pack the wheel bearings. Install the inner wheel bearing and tap in the wheel seal.
|

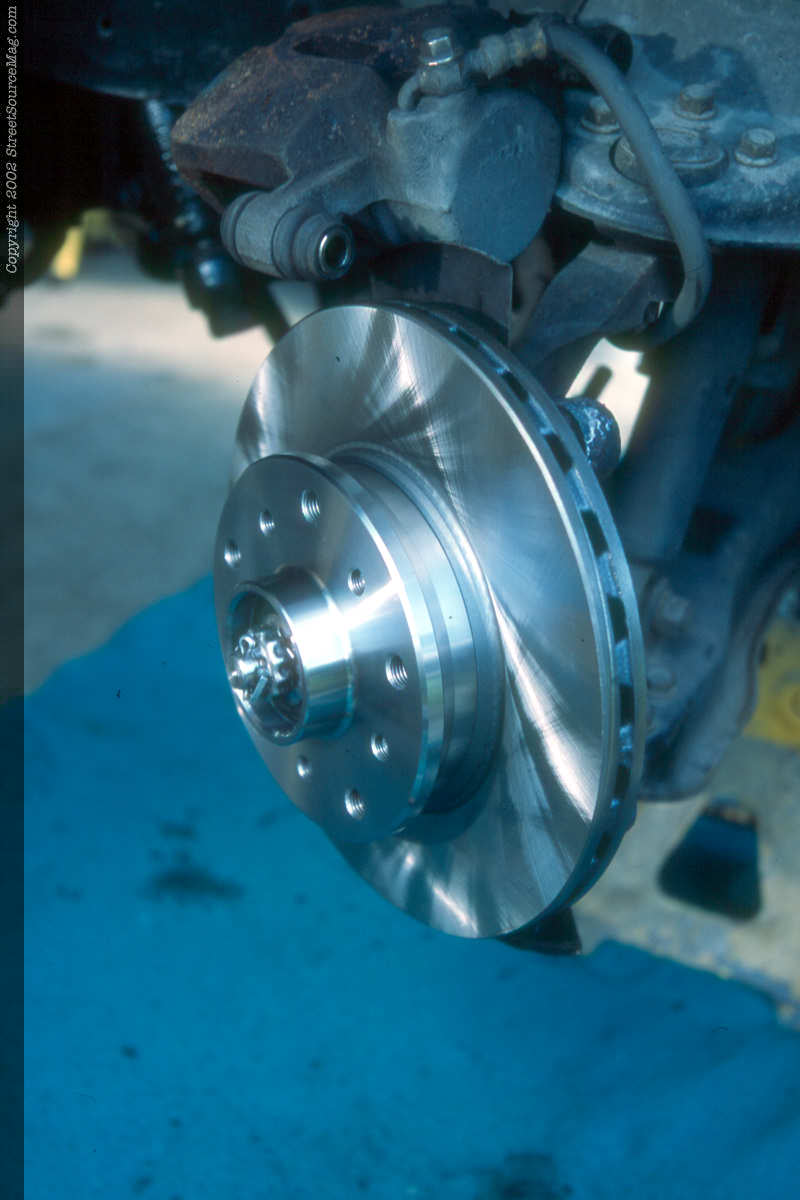

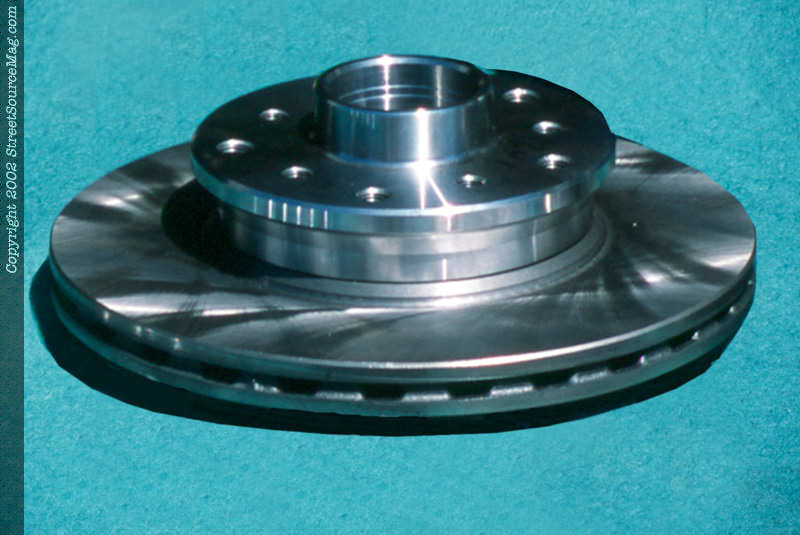

Step 6 This is a picture of the assembled hub. *Note: It is important to have the hub and rotor assembled correctly. Step 7 Apply clean wheel bearing grease to the spindle, install the assembled hub and outer wheel bearing to vehicle manufacturer specifications. Be sure to always use a new cotter pin.
|
