1997 Toyota Tacoma 2wd

Dirk (1 owner profile)
Purchased: 2002-09-01

Photos

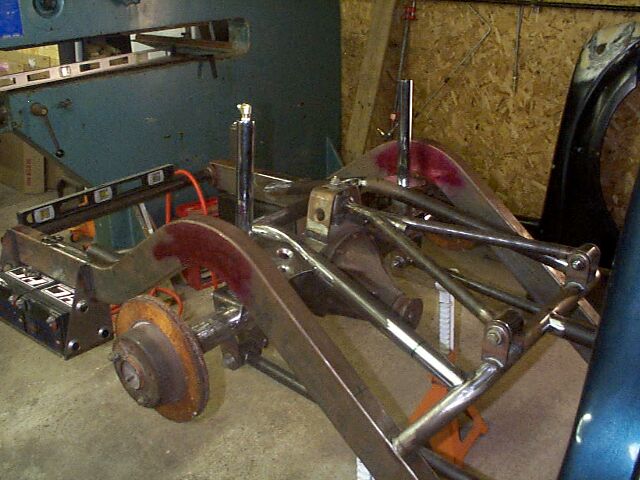

Mandrel Bent 2x4 tubing with wich bone rearend.Axle shortened 9".Everything is tig welded
Mandrel Bent 2x4 tubing with wich bone rearend.Axle shortened 9".Everything is tig welded 2006-06-05

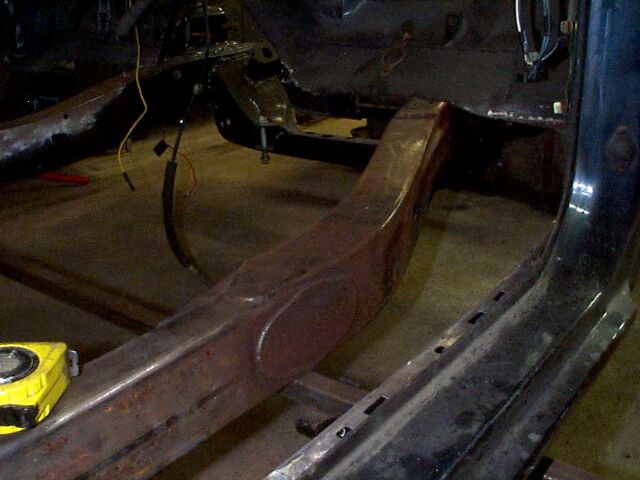

Stock floor bodydrop with 2x4tubing under the cab, and stock floor completely gutted. Sectioned front frame to match up to the 2x4 tube.
Stock floor bodydrop with 2x4tubing under the cab, and stock floor completely gutted. Sectioned front frame to match up to the 2x4 tube. 2006-06-05

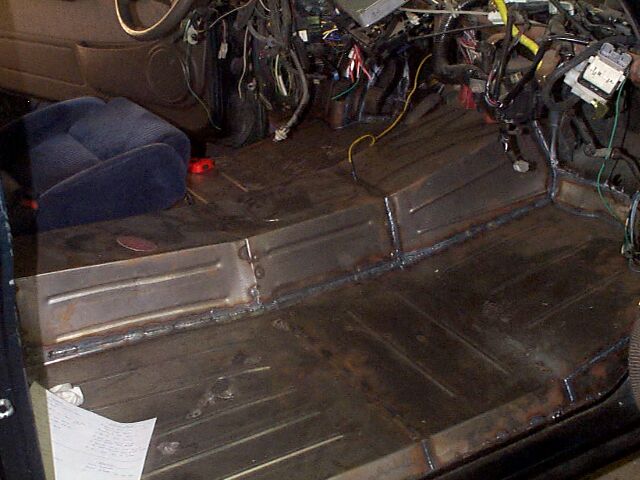

Sheetmetal floor with beads. 1" tubing inderneath for support, and this setup gives more headroom than stock.
Sheetmetal floor with beads. 1" tubing inderneath for support, and this setup gives more headroom than stock. 2006-06-05

Engine

Stock 2rz with Aem air intake. Fabricated new motor mounts to lower motor to clear hood.

Exterior

Shaved and smoothed. Bed will be constructed only using the bed sides (original bed got T-Boned), new inner fenders, custom mirrors.

Interior

Stock floor gutted for new sheetmetal floor for stock floor body drop.

Suspension

Stock Floor bd 3 1/4", Pro hopper juice, mandrel bent rear rails, with 2x4 tubing under the cab. Rear axle,narrowed 9", with axle shafts resplined by Dutchman Motorsports, narrowed for a deep ass offset. Front upper a arms with uniballs to handle the 19"ers.

Wheels

19" custom billet one offs ,cnc machined, and welded in by me.

Stereo

Don't know

Future Plans

I just want it done
