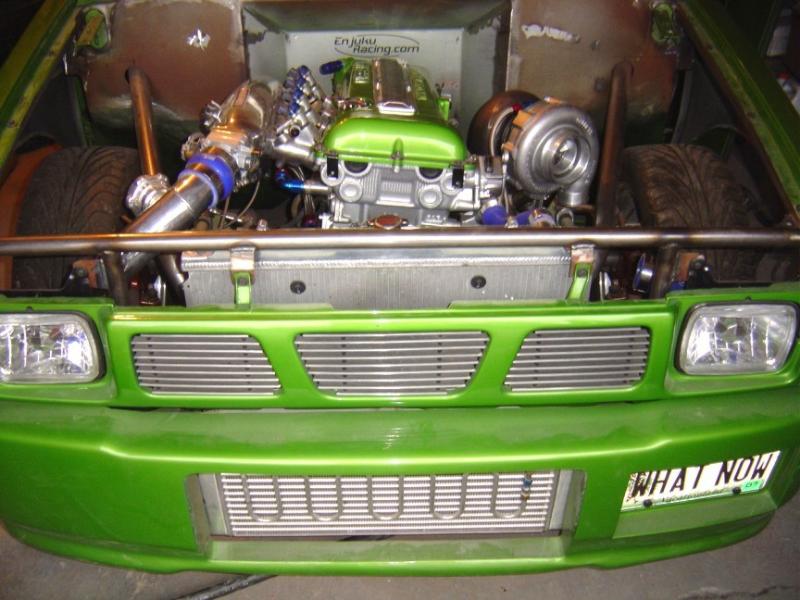

-Garret Twin Scroll GT4088R .1.06 A/R Ported turbo 4" inlet. good for 750+ horsepower.
-Tomei Exhaust Camshafts SOLID 280 Duration 12.50mm Lift
-Tomei Intake Camshafts SOLID 280 Duration 12.50mm Lift
-Tomei Solid Pivots
-Tomei Cam Gears
-Supertech Dual Valve springs and Titanium Valve Spring Retainers
-Supertech Intake/Exhuast Valves
-Supertech Valve Guides
-5 angle valve job
-APEXi Metal Head Gasket
-CP 87mm forged 9.0-1 compression pistons
-Crower forged conecting rods
-ARP main studs
-ARP Head Stud Kit
-AEM Engine Managment System with wideband o2 A/F gauge
-Full Race Twin Scroll T4 dual waste gate Turbo manifold
-Custom 4" Polished SS Mandrel Bent TurboBack Exhaust
-Tial Twin 44mm external wastegates
-Tial 50mm racing BOV "Blow Off Valve"
-Meziere electric water pump
-Aeromotive A1000-6 Injected fuel pressure Regulator
-Aeromotive A1000 Hi Press Inline Fuel Pump
-Maxworx Top feed fuel rail w/ -8an inlet -6an outlet
-RC Engineering Top Feed 1600cc Injectors
-8an SS braided fuel line -6an ss braided return line to regulator
-Z32 Mass Air Flow Sensor. Might need to convert to MAP with GT35r
-Splitfire DIS coil pack ignition
-Thermal Intake Manifold Gasket
-NGK Iridium Plugs Heat Range 8
-OEM new oil pump/ front cover
-OEM new timing chain
-OEM new timing chain guides
-OEM new updated timing chain tensioner
-OEM S13 Gasket set
-Unorthodox Racing Lightened Underdrive Crank Pulley
-Greddy Pulley Kit
-greddy Rocker Arm Stoppers
-Greddy Intake Manifold Fully Polished
-Greddy Cold Pipe
-Greddy R-Spec Front Mount Intercooler

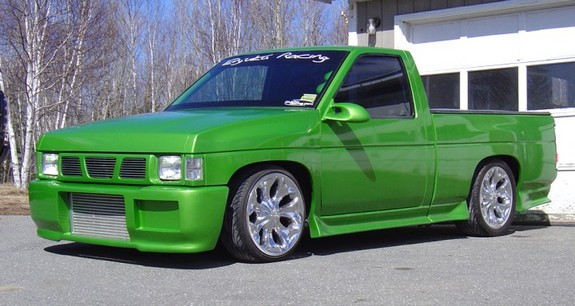

"Everything shaved" Smooth shaved inner fenders,Firewall total flat and smooth. Removed body seam and all holes filled and boxed in 4" behind Engine, Door handles,key holes,emblems, hood squirters,antenna,whiper cowl panel and whipers,tailgate skin with plate box. Molded ground FX and roll pan,4x4 fenders,4x4 toyota front bumper & valence, billet 3 pc. grill.H-4 12,000K H.I.D Lights, Diamond back headlight conversion , Altezza Taillights

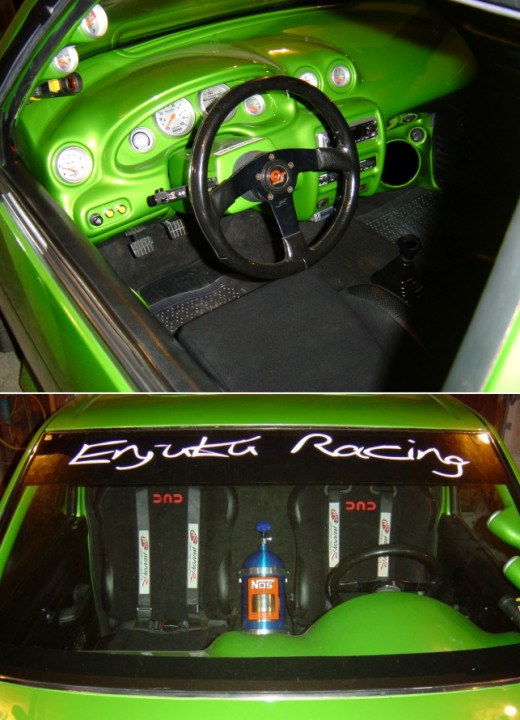

Fiberglass dash with Auto Meter Ulta Lite gauges, Oil Temp, Nitrous Pressure, Air Fuel Ratio, Oil Pressure, Tach, Speedo, Water Temp, Fuel level, Boost Pressure, Fuel Pressure, EGT Temp and Voltmeter. Auto Meter Shift Light. 14 point roll cage, Kirkey Racing Seats W/ impact 5 Point harnesses

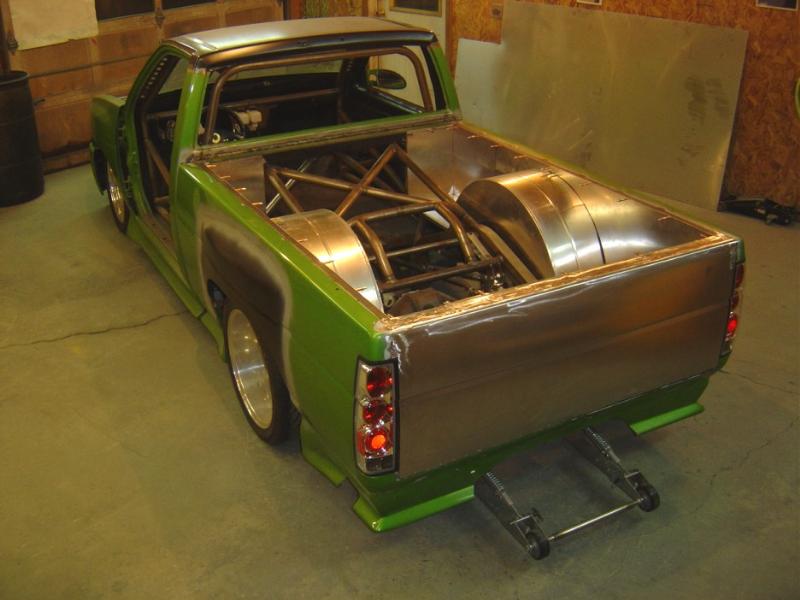

Front: Fat mans fabriication Mustang II IFS w/ QA1 adjustable coilover shocks, Rear: Parallel 4 link w/wisbone locator, and
QA1 Adjustable coilover shocks, Chris alston FAB9 9inch ford rearend with Strange aluminum 3rd member, strange spool, 35 spline strange axles, 4.56 gears . Trucks setup for 1/4 mile dragging not frame dragging :)
18x9 and 18x12 Colorado Customs wheels with 275/35/18 front 345/30/18 rear
Mickey Thompson 32x14.5x15 on a set of CenterLine 15x15 wheels for Drag Racing
Lots of goodies, 165.6 DB with 2 AudioBahn AW1508T woofers In a blow thru. 2 AudioBahn A2300HCT 2400watt amps. A5100T 5.1 Surround amp to run component sets, Polk MOMO 5.25 & 6.5 component sets, Audiobahn ADD51T 5.1 Digital surrond sound decoder,400 pound Sub woffer box Removable w/ 2 bolts for racing.
There is Only a few other Hardbody in the USA with this engine swap that I know of. And it is no wheres near this EXTREME :)
http://home.maine.rr.com/jazmonz/SR_20-Hardbody.htm
Paint it and finish it
