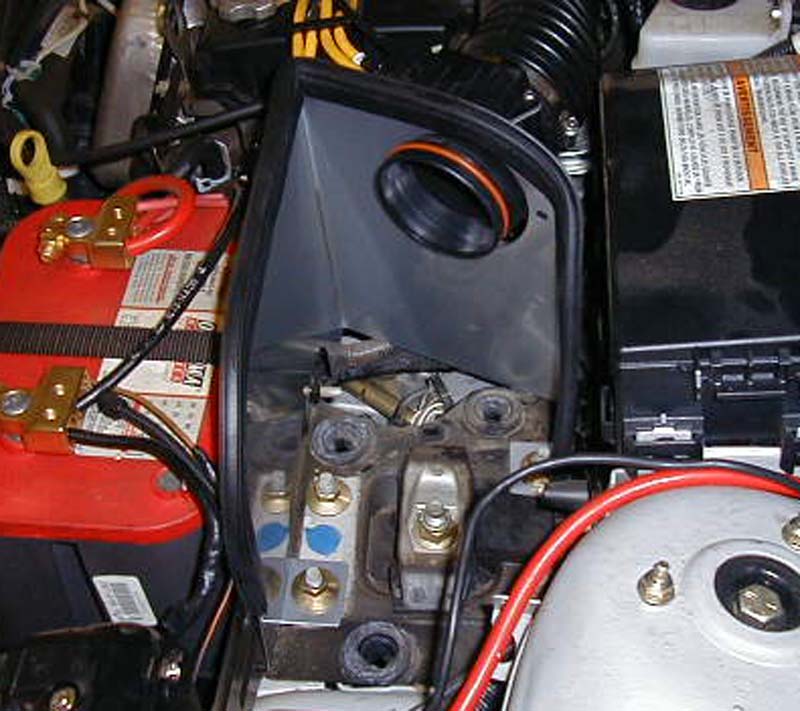

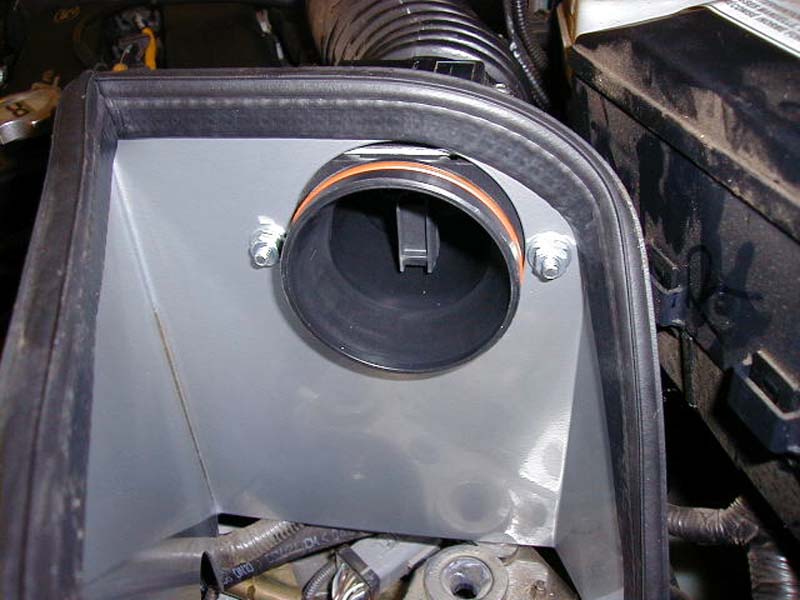

 Step 9: Here’s a closer look at those mounts. Notice the mass airflow sensor is now in the hole for the heatshield. Step 10: Bolt the mass airflow sensor to the heatshield using the provided nuts, bolts and washers.
|

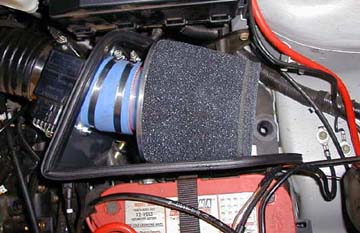

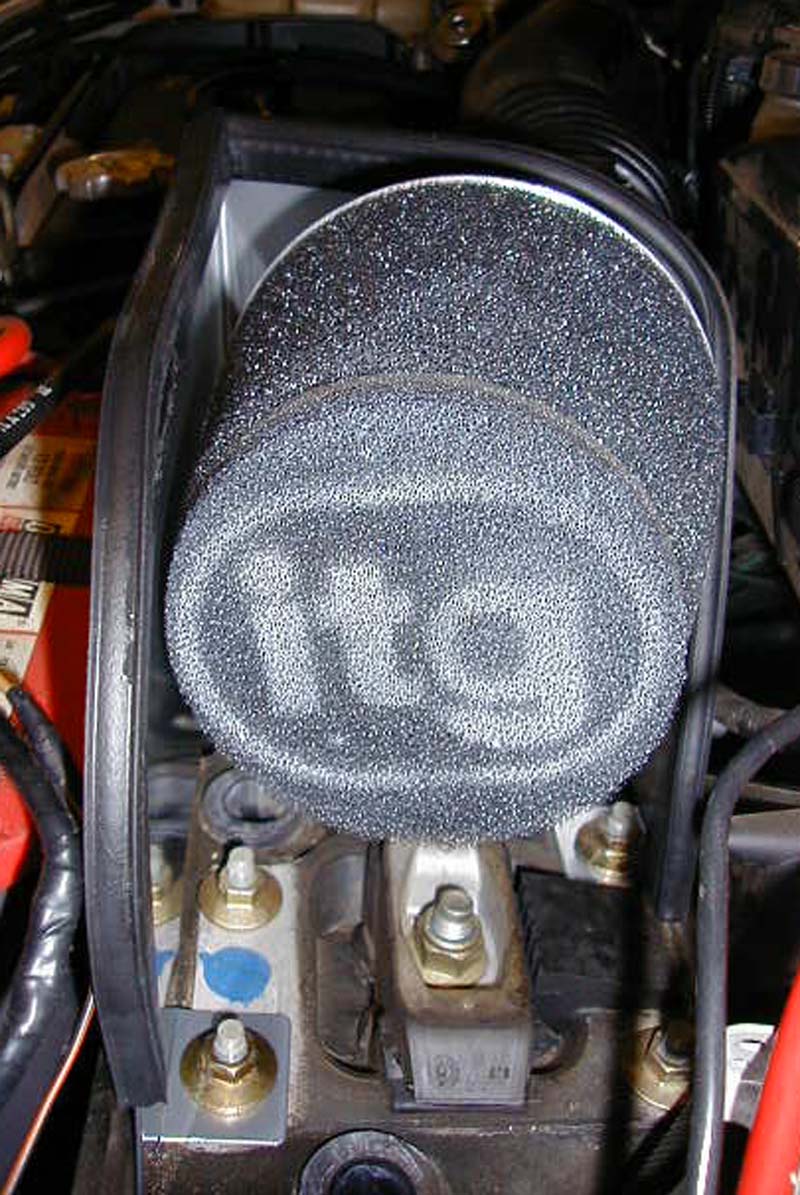

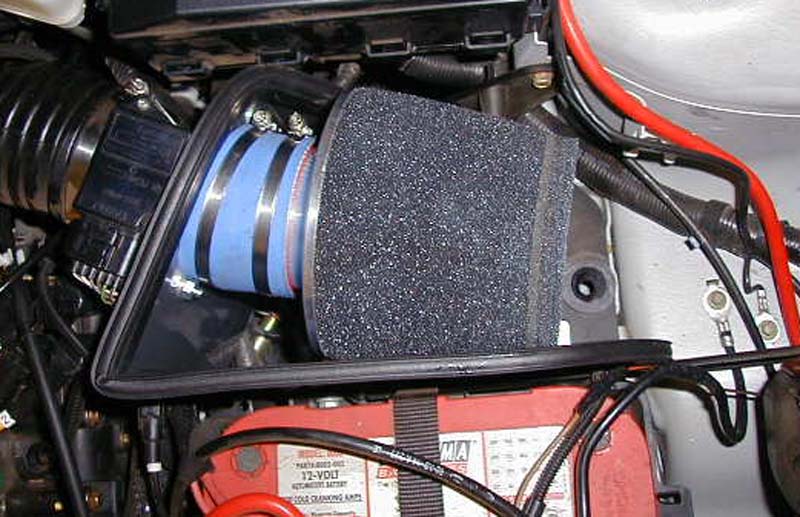

 Step 11: Install the silicone tubing to the mass airflow sensor. Notice there’s an angle on it? That’s to keep the filter from rubbing on the heatshield. Mount the filter and hose clamp it on tight.  Step 12: Notice how the filter doesn’t rub against the heatshield? This means its done correctly.
|
